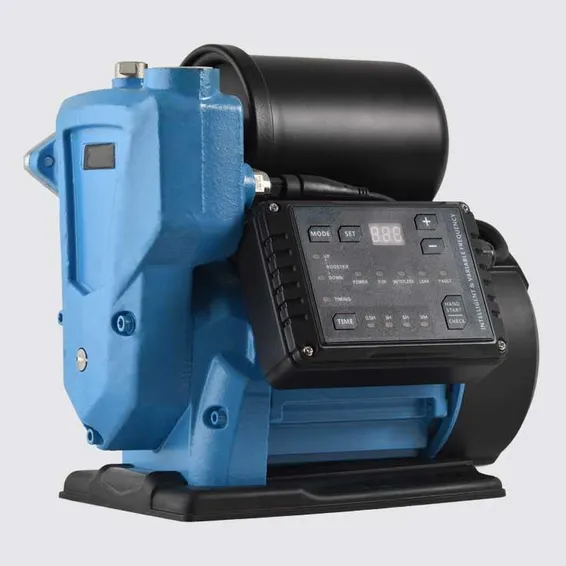

JoJo Variable Speed Drive Water Pressure Pump 0.75 kW
The JoJo VSD Water Pressure Pump 0.75 kW is designed to deliver reliable, constant water pressure for domestic applications—whether drawing from a tank or from low-pressure mains. With its variable speed drive technology, the pump adapts motor speed to demand, improving efficiency and performance.
Key Specifications & Features.
JoJo Variable Speed Drive Water Pressure Pump 0.75 kW
- Motor Power: 0.75 kW (≈1 HP) for typical home booster needs.
- Maximum Flow Rate: Up to ~66 L/min for the 0.75 kW model.
- Maximum Pressure / Head: Up to ~4.5 bar for this model (YBP750 version) according to the manual.
- Best Efficiency Range: Flow ~13-40 L/min and pressure ~2-3.5 bar for optimal efficiency.
- Features: Variable speed drive for constant pressure, automatic start/stop, dry-run protection, over-current protection.
- Use Conditions: Designed for clean water (no solids), ambient maximum 40 °C, fluid temperature up to 80 °C.
Why Choose This Pump?.
JoJo Variable Speed Drive Water Pressure Pump 0.75 kW
- Its VSD (variable speed) technology means that the motor only works as hard as it needs to, adapting to water demand and maintaining consistent pressure throughout the home.
- Ideal for homes with tanks or low municipal pressure where multiple taps/showers may open simultaneously—reduces pressure drop compared to a fixed-speed unit.
- Energy-efficient and quieter than many older booster pumps—useful when noise or solar-power integration is a factor.
- Trusted South African brand with appropriate parts and support network.
Typical Applications & Use Cases.
JoJo Variable Speed Drive Water Pressure Pump 0.75 kW
- Homes with storage tanks (e.g., rain-harvest or municipal backup) needing reliable pressure to showers, taps and washing machines.
- Properties where mains water pressure is weak or loses pressure when multiple outlets are used.
- Upper‐storey bathrooms or long-pipe runs where consistent pressure and flow matter.
- System upgrades where older fixed‐speed pumps are inefficient, noisy or unable to maintain pressure under load.
Pre-Purchase & Installation Checklist.
JoJo Variable Speed Drive Water Pressure Pump 0.75 kW
- Suction / Tank Setup: If feeding from a tank, ensure suction lift is within acceptable limits (max ~7 m per manual).
- Plumbing & Pipe Size: Follow manufacturer’s recommended minimum diameters (e.g., 1″/25 mm suction for 0.75 kW) and use rigid, well-supported piping to avoid losses.
- Electrical Supply: Ensure 230 V single phase supply (or as per spec), proper circuit breaker, and correct wiring rated for starting current. Because this is a VSD pump, startup surge is lower than fixed-speed but still check compatibility with solar/inverter if used.
- Installation Location & Noise: Install on a flat, vibration‐isolated base; VSD pumps are quieter but still allow for noise reduction where near living spaces.
- Maintenance & Protection: Ensure pump cover or enclosure (especially outdoors) to protect from the elements, and filter on inlet if water source may contain debris. Use correct non‐return valves and follow priming instructions (for suction setups).
Summary Table.
JoJo Variable Speed Drive Water Pressure Pump 0.75 kW
| Specification | Detail |
|---|---|
| Model | JoJo VSD Booster Pump 0.75 kW (YBP750 series) |
| Motor Power | 0.75 kW |
| Maximum Flow | ~66 L/min |
| Maximum Pressure | ~4.5 bar |
| Best Efficiency Flow/Pressure | 13-40 L/min @ ~2-3.5 bar |
| Features | Variable speed drive, automatic start/stop, dry-run protection |
| Typical Applications | Domestic booster from tank or low‐pressure supply |
Conclusion.
JoJo Variable Speed Drive Water Pressure Pump 0.75 kW
The JoJo 0.75 kW VSD Water Pressure Pump</strong is an excellent choice for homeowners seeking reliable, efficient and quiet water pressure for their household supply. Whether you’re pulling from a tank or boosting municipal pressure, its VSD technology offers superior performance under varying demand loads. Before purchase, ensure correct installation conditions (suction, piping, electrical supply) and ask your installer to confirm compatibility with your system. Order Here.
