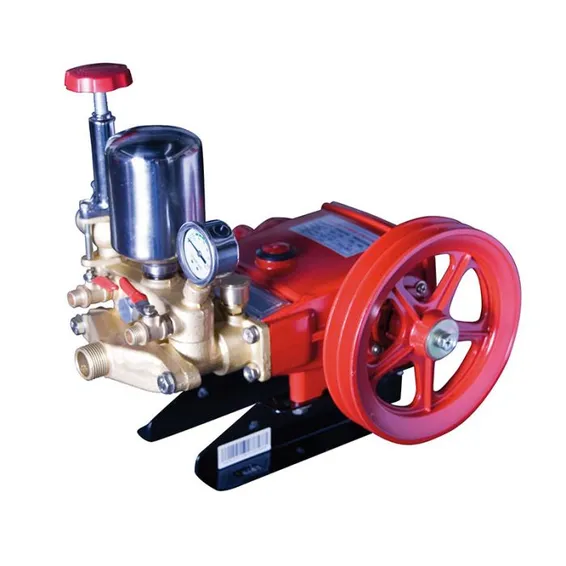

Hoffmann HP Piston Pump HL22B – 22 L/min at up to 40 bar
The Hoffmann HP Piston Pump HL22B is a robust piston-type pump engineered for high-pressure applications in demanding environments. It delivers up to 22 liters per minute and can handle pressures up to ~40 bar. Designed with an automatic pressure valve and constructed such that it can run dry without damaging the seals or plungers, it’s ideal for fire-fighting, irrigation, cleaning and other high-pressure tasks.
Key Specifications & Features.
Hoffmann HP Piston Pump HL22B
- Flow rate: ~22 L/min.
- Maximum working pressure: Up to ~40 bar.
- Pressure control: Built-in automatic pressure relief valve.
- Dry-run capability: Designed to endure dry operation without damage to seals/plungers.
- Plunger & Pump Head Materials: Stainless steel plungers, brass pump head in some models of HL22
- Recommended power drive: The HL22 models – “HL22B1 / 22M” – list reel power ~3.1 kW / 3.8 kW depending on version.
- Weight & Dimensions (approx.): Example listings show ~8.64 kg weight, dimensions ~400 × 300 × 348
- Price (indicative): ~R 2,000 (VAT & stock dependent). Example: R 2,018.00 at one retailer.
Why Choose This Pump?.
Hoffmann HP Piston Pump HL22B
- Its **22 L/min flow at 40 bar** makes it suitable for fire-fighting monitors, agricultural boom sprayers, or high-pressure wash systems.
- Dry-run protection means less risk of failure or damage when suction conditions are not ideal — a helpful safeguard in field settings.
- Compact weight (~8-9 kg) and good build materials make it mobile and relatively easy to integrate into diesel engine drives or PTO setups.
- Reputable brand and local South African availability of spares (Hoffmann Power).
Typical Applications & Use Cases.
Hoffmann HP Piston Pump HL22B
- Mounted on agricultural machinery or tractors for chemical/irrigation application (boom sprayers, orchard sprayers).
- Fire-fighting pump rigs or mobile fire units where a compact high-pressure pump is required.
- High-pressure cleaning or wash-down systems (truck wash bays, equipment wash-stations) where moderate flow but high pressure is needed.
- Water transfer applications where inlet conditions may vary and suction head may be limited, requiring dry-run robustness.
Pre-Purchase & Installation Checklist.
Hoffmann HP Piston Pump HL22B
- Drive source compatibility: Confirm whether you’re driving via engine, belt, PTO or electric motor; ensure RPM matching (HL22 series 800-950 rpm listed) and power available.
- Suction/inlet conditions: Maintain correct suction head or prime the pump; although dry-run tolerant, best service life when properly installed.
- Outlet piping & valves: Use pipe sizes that minimize pressure loss; include non-return and isolation valves to protect pump and system.
- Material compatibility: If pumping chemicals or agro-chemicals, confirm that pump head/plungers are compatible (some rigs may need special seals/materials beyond stock brass/stainless).
- Maintenance access: Even though durable, pumps of this type benefit from periodic inspection of seals, plungers, valve plate, belt/timing if used.
- Warranty & spares: Confirm local stock of spare parts (valve plate, seals, accessories) and warranty terms. Hoffmann listings indicate local dealer network.
Summary Table.
Hoffmann HP Piston Pump HL22B
| Specification | Detail |
|---|---|
| Model | Hoffmann HP Piston Pump HL22B |
| Flow Rate | ~22 L/min |
| Max Pressure | ~40 bar |
| Drive Power (approx.) | 3.1 kW / 3.8 kW (varies) |
| Weight (approx.) | ~8.6 kg |
| Indicative Price | ~R 1,600 (Incl. VAT) |
Conclusion.
Hoffmann HP Piston Pump HL22B
The Hoffmann HP Piston Pump HL22B</strong is a strong option if you need a compact, high-pressure piston pump capable of ~22 L/min at ~40 bar. Its dry-run tolerance, quality materials and South African support network make it suitable for agricultural, fire-suppression or industrial wash systems. Be sure to check drive compatibility, suction/inlet conditions and ensure correct installation to maximize its lifetime. Order Here.
